About KRISCOL
KRISCOL color material
products you can explore your creativity
when designing and constructing your
building. You get to choose from a range
of attractive colors and the flexibility
of design gives you the opportunity to
model your dream structure.
Convenient and Quick Solutions KRISCOL 'S range of Pre-Engineered
Building products offer quick,
convenient readymade building solutions
to industrial and domestic building
needs.
Economical
Products KRISCOL 'S range of products are
economical and very durable, thus saving
on construction and maintenance costs in
comparison with related traditional
products.
Resistance to
Extremities of Weather KRISCOL Color material products are
engineered to withstand the extreme
weather conditions of the south Asian
region. They are robust and designed to
resist rough weather conditions.
Low Maintenance KRISCOL 'S range of products are made
with specialized layers of color and
protective coating and these resist
corrosion, cracking, peeling and
chipping. As a result the product lasts
longer.

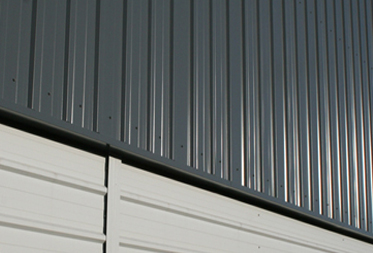

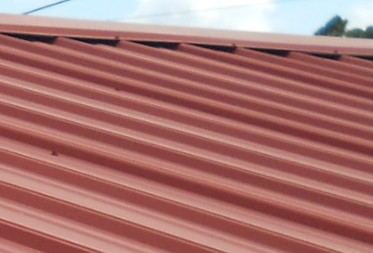

Our Range of Products Our wide range of roofing products
consist of Trapezoidal profile, Wall
cladding, Corrugation profile,
Curvings-Crimpings and variety of
accessories like flashings, Ridges,
bargecaps, louvers, gutters, down pipes
etc.
KRISCOL also

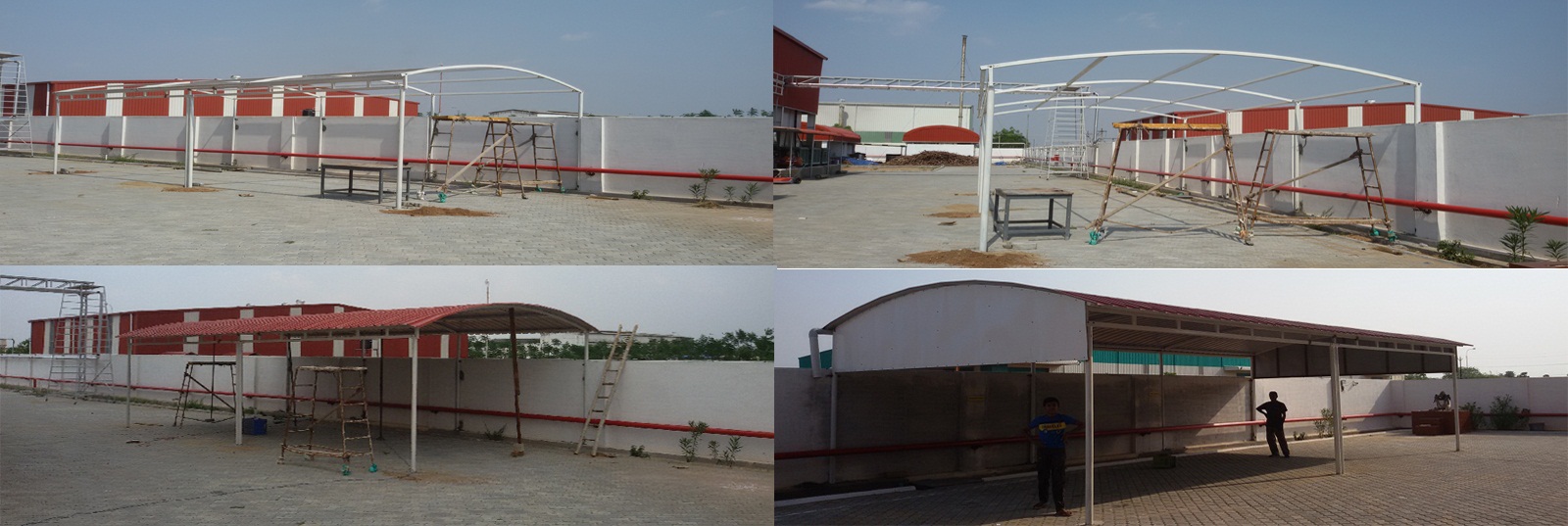

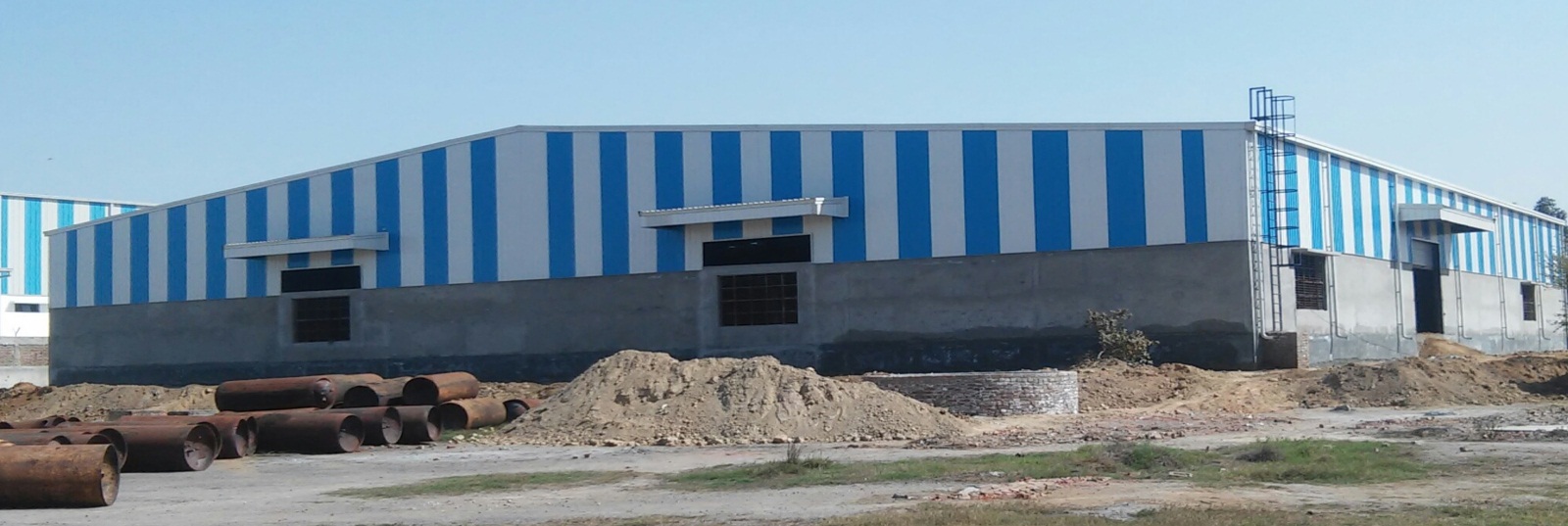

used in Pre-Engineered Buildings Pre-Engineered building structure offers
a wide range of readymade building
solutions, which are convenient and
economical for both factory and domestic
building needs. PEBs saves you the
hassle and headache of having to find
material, labour and the related costs
that come with it. Simply contact us and
we will provide you the Total Solution
for any of your building needs.
KRISCOL A
Blend Of Good Design And Versatility Our range of Roofing, Cladding and
Rainwater Systems, made from raw
materials of the highest quality in
accordance with strict ASTM / JIS / AS
and IS standards, offers flexibility of
design to suit any construction need be
at your FACTORY, WAREHOUSE, HOTEL,
RESTAURANT, SCHOOL, COLLEGE, GARDEN
SHED, GARAGE, ROOF TOP, FARM HOUSE,
SHELTERED WALKWAYS & SECURITY GUARD
SHELTER. Our products are made to meet
your aesthetic needs as well.
Coating & Color
Range KRISCOL offers a myriad range of
colors inspired by the beauty of nature.
Customised color options/ RAL code
colors also available on request.
Note: Please refer to the
color card with your nearest dealer for
accurate color reference. Actual colors
may vary from those shown here in and
marginal variation may occur from batch
to batch. Standard bottom coat is Grey
or Light Grey.
Do's And Don'ts
Use
recommended personal protective
equipment (helmet, goggles, shoes, hand
gloves & high visibility vests) while
handling and installing the sheets.
Always
wear smooth, soft-soled shoes.
Cut
materials on the ground and not on other
materials where hot particles can fall
and cause damage to the finish of the
sheet.
Remove
all metal scrap, drill particles, pop
rivet mandrels and excess fasteners from
the roof to avoid rust stains.
Use
a power saw with a metal-cutting blade
to cut thin metals. This results in
fewer hot metal particles and leaves
less resultant burr than a carborundum
disc.
Fixing
of SDS screws recommended with Torque
adjustable guns. For roof work, fix
screws on the crest. For wall cladding,
fix on the crest or on the valley.
Fasteners
to confirm to AS 3566 Class 3- 4 for
external application.
Structurals
like tubes, HSS, angles and channels
(except zinc coated supporting
structures) should be painted before
fixing the sheets.
Clean
the roof with clean water or mild
detergent by using soft cloth, mop or
soft nylon bristle brush to avoid swarf
stains and rusts.
Don’t
keep color coated sheets in contact with
cement, dirt and chemicals like paint
thinner.
Don’t
install the roof sheeting during rains,
as sheets will get wet and slippery.
Don’t
use stainless steel screw, J hook and
carbon washer as they may damage the
sheet.
Don’t
over drive or under drive the screw as
it can lead to water leakage or washer
damage.
Don’t
leave material articles on the roof.
Don’t
throw bird feed on the sheet.
Bird-dropping can damage the color &
aesthetics of the sheets.
Don’t
use acetic acid based sealants which
liberate aggressive by-products during
curing which is detrimental to steel
sheets.
Never
use abrasive or solvent type cleaners
and wire brushes, steel wool, sponge
scourers to clean the roof sheets as it
softens the paint film.
Don’t
walk on single rib, sheet, and end laps
gutter and skylight sheets.
Installation &
Fixing Guidelines KRISCOL Roofing, wall cladding,
corrugation and accessories are
manufactured from the finest high
quality raw material coils of , PPGL
(Pre Painted Galvalume) and NCGL (Non
Colour Galvalume).
Storage
Instructions
Store
indoor and away from access to open
areas. If left in the open, protect them
with water proof covers.
If
material is not required for immediate
use, stack them neatly and clear off the
ground. Maintain a clear gap of 30cm
between sheet package and ground.
Store
off the ground and with a minimum 50o
slope (1:10) so that if rain penetrates
the covering, water will drain away and
not form a water pond.
Inspect
the storage site regularly to ensure
that moisture has not penetrated the
stock.
If
stacked or bundled products becomes wet,
separate it without delay, wipe it with
a clean cloth and stack it to dry
thoroughly.
The
sheet should be kept gently to ensure
that it is not damaged.
Use
spreader bar for long sheets. For small
to medium size projects, without
mechanical handling facilities, you can
unload sheets by hand and pass them up
to the roof one at a time.
Use
personal protective equipments such as
hand gloves and closed shoes while
lifting.
Don’t
keep heavy material on stacked sheets to
avoid damages.
Don’t
place sheets vertically without proper
support.
Don’t
keep sheets in direct contact with soil.
Don’t
let the surface get wet.
Don’t
use metal chain for lifting sheets.
Don’t
use material on walking path. Sheet
moving path should be clear and no
movement of people should be permitted
in the path.
Don’t
slide sheets over rough surface or over
each other. Always carry tools, don’t
drag them.
Product
Highlights
Attractive
Colours and Flexible Designs
Resistance
to Extreamities of Weather
Very
low Maintenance
Excellent
Corrosion Resistance
Unique
profile having high strength to wait
ratio
Environment
friendly and fire proof
Can
withstand wind speed of Approx 200 kmph
fixed with SDF Screws
Excellent
Coverage of space
Strong
Durable and Total Safety
Anti
- Capillary Groove Ensures Leak - Proof
Roof
Minimum
Yield Strength of 550 Mpa Ensures
Required Strength for Roofing
Application
Accurate
Thickness, width & length Helps give the
perfect fit for any roof
Wider
valley Ensures Higher water Discharge in
case of Heavy Rains |
